Airborne LiDAR point cloud classification has been a long-standing problem in photogrammetry and remote sensing. Early efforts either
combine hand-crafted feature engineering with machine learning-based classification models or leverage the power of conventional
convolutional neural networks (CNNs) on projected feature images. Recent proposed deep learning-based methods tend to develop new
convolution operators which can be directly applied on raw point clouds for representative point feature learning. Although these methods
have achieved satisfying performance for the classification of airborne LiDAR point clouds, they cannot adequately recognize

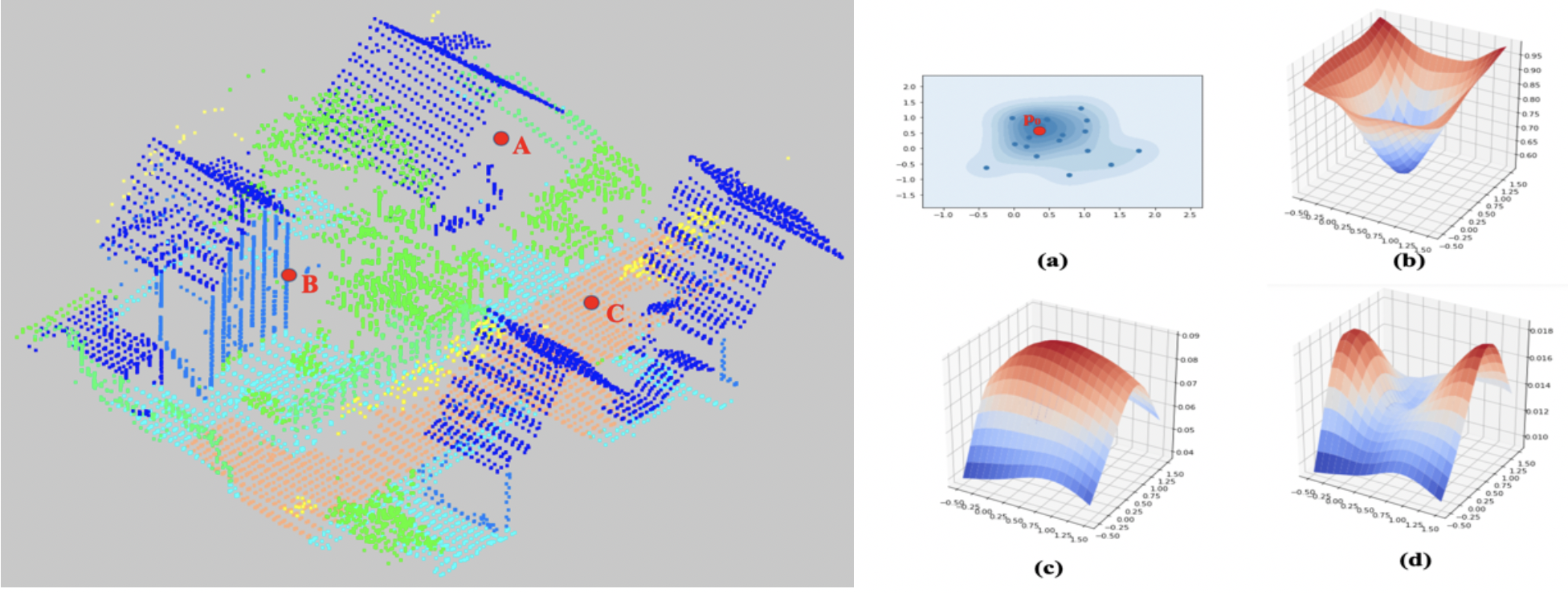

fine-grained local structures due to the uneven density distribution of 3D point clouds. In this paper, to address this challenging issue,
we introduce a density-aware convolution module which uses the point-wise density to reweight the learnable weights of convolution
kernels. The proposed convolution module can approximate continuous convolution on unevenly distributed 3D point sets. Based on

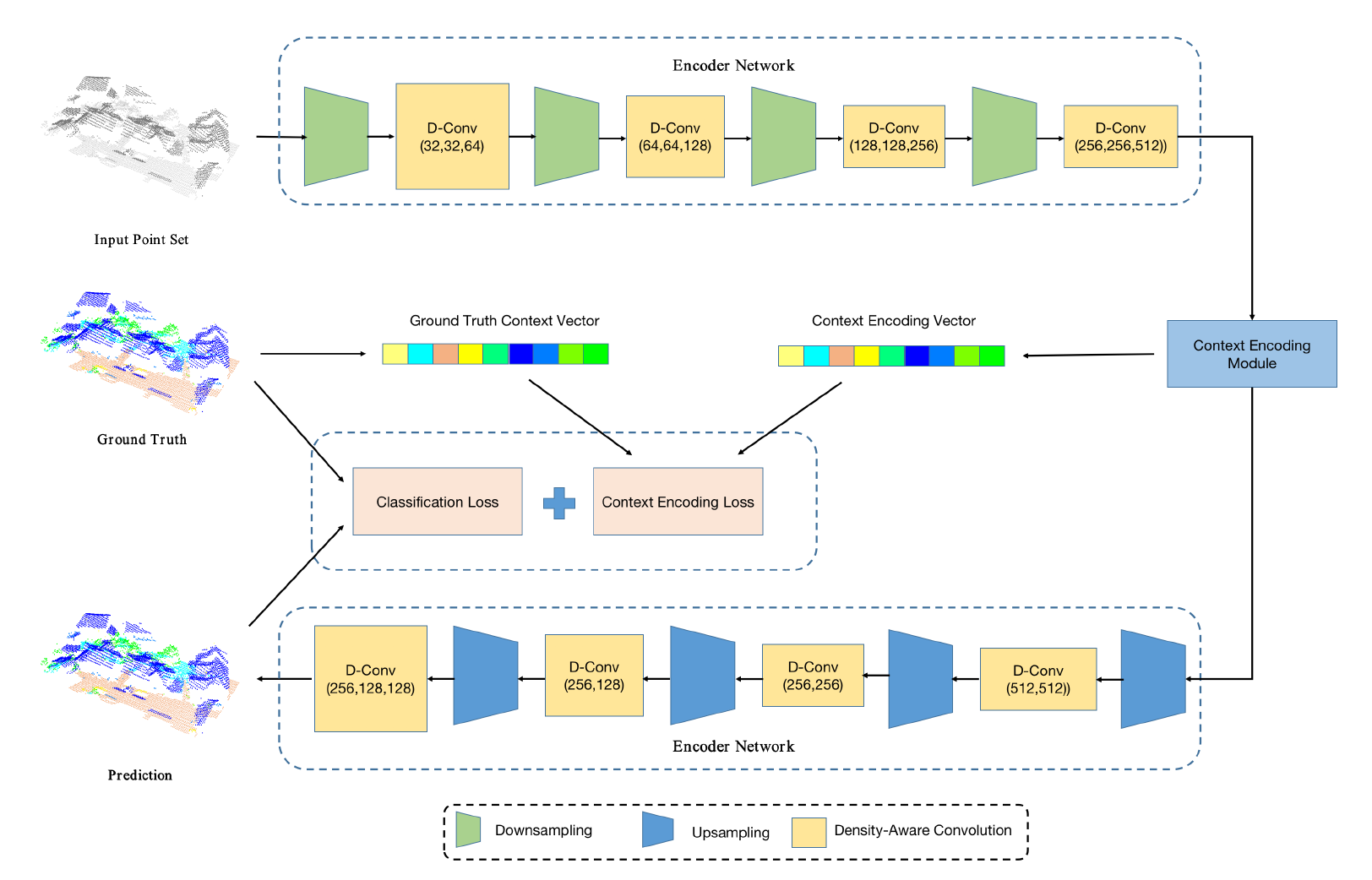

this convolution module, we further develop a multi-scale CNN model with downsampling and upsampling blocks to perform perpoint
semantic labeling. In addition, to regularize the global semantic context, we implement a context encoding module to predict a
global context encoding and formulated a context encoding regularizer to enforce the predicted context encoding to be aligned with the

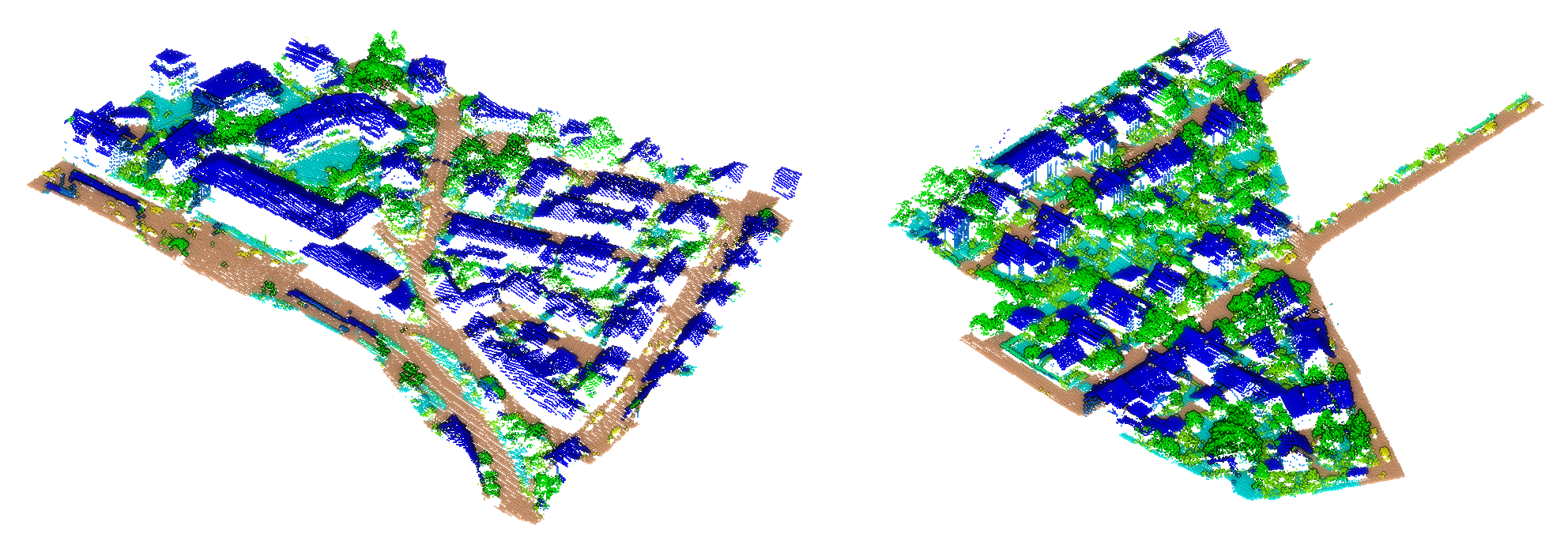

ground truth one. The overall network can be trained in an end-to-end fashion and directly produces the desired classification results

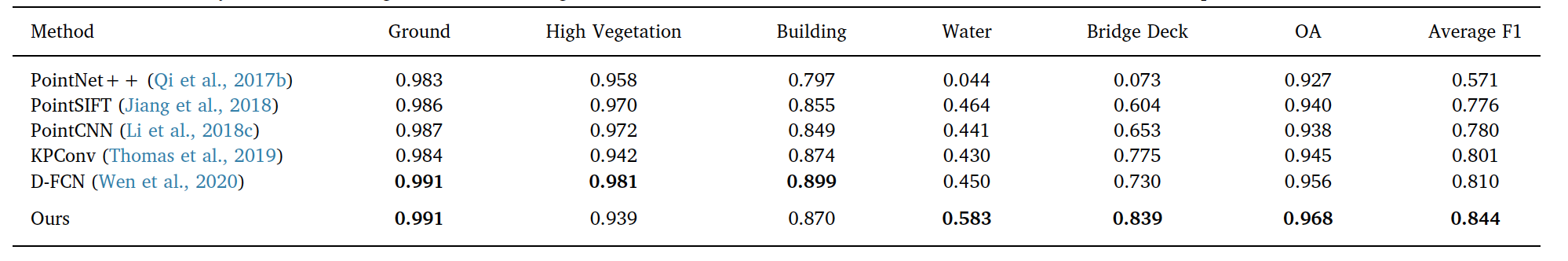

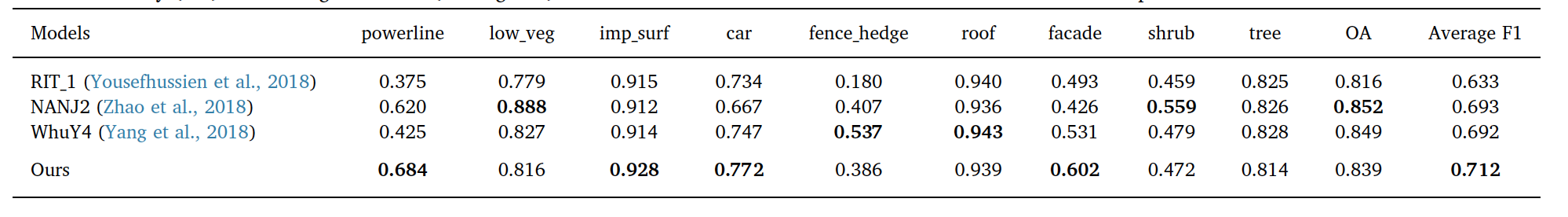

in one network forward pass. Experiments on the ISPRS 3D Labeling Dataset and 2019 Data Fusion Contest Dataset demonstrate the
effectiveness and superiority of the proposed method for airborne LiDAR point cloud classification.
|
